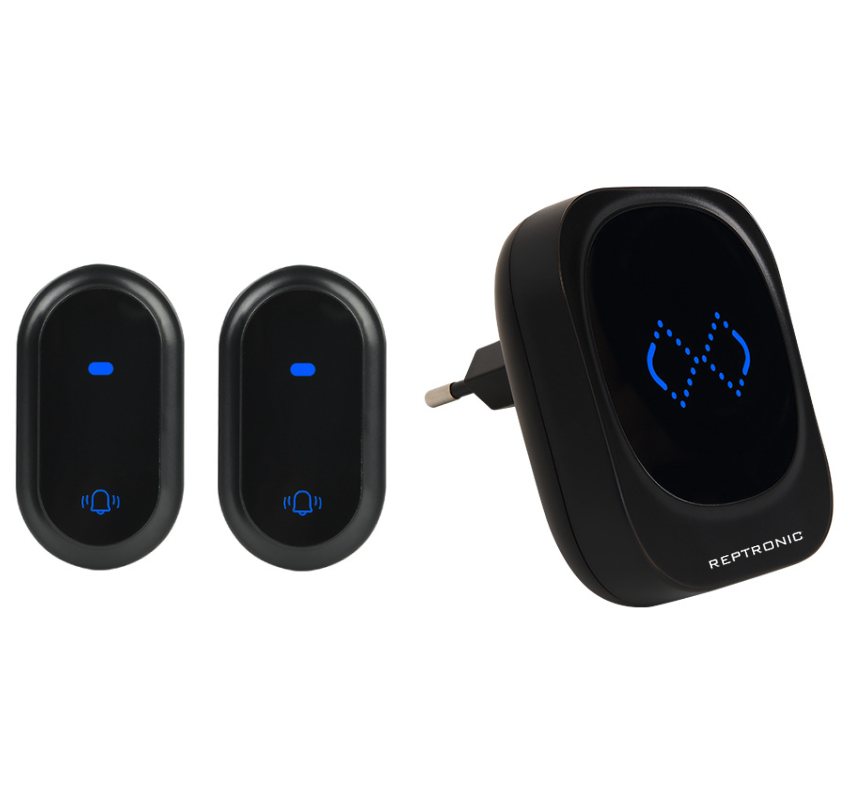

Reptronic DIY black wireless doorbell: RPTDB46 - 1R2B

Reptronic DIY black wireless doorbell: RPTDB46 - 1R2B

Enhance your home with the RPTDB46, a premium self-powered wireless doorbell that combines advanced functionality with sleek aesthetics. Designed for reliability in all environments, this doorbell is built to perform-rain or shine, storey by storey.

What is IP68 rated?

IP68 is better suited for outdoor use than IP45. It can handle rain, splashes, and even light hose-downs, but should not be submerged or exposed to high-pressure water jets. Ideal for mounting on a gatepost, wall, or fence where it may be rained on directly, even without much shelter. If you're looking for robust water resistance, IP68 is a solid mid-tier cho

Key Features

38 Elegant Chimes: Choose from 38 high-quality melodies to match your mood or occasion. Perfect for adding a touch of personal style to any space.

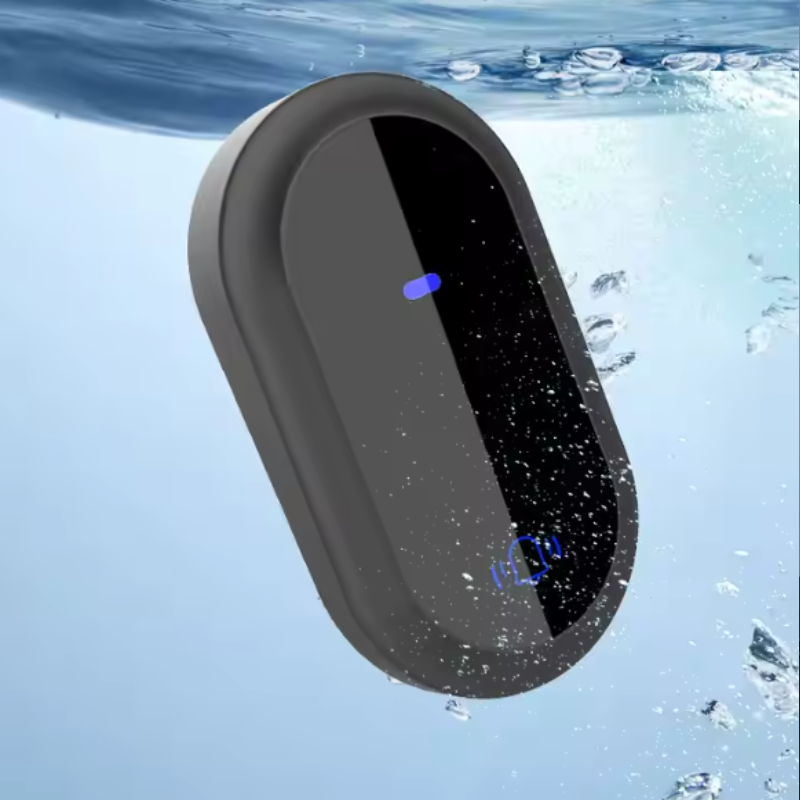

IP68 Water & Dust Resistance: The transmitter is rated IP68, making it fully resistant to dust and capable of withstanding immersion in water. It remains fully operational even during heavy rain-no need to worry about weather conditions.

Adjustable Volume with Silent Mode: With a loud, clear signal that can be heard across a four-story home, this doorbell ensures you'll never miss a visitor. Features 4 adjustable volume levels, including a silent mode for times Self-Powered Transmitter: No batteries required! The transmitter generates electricity with each press, offering a maintenance-free, energy-saving solution that's convenient and eco-friendly.

Plug-and-Play Receiver: The receiver simply plugs into any standard wall outlet (AC 100-240V, 50/60Hz) and is ready to use. No wiring or tools required.

Technical Specifications

Frequency: 433.92MHz

Pairing Mode: Learning code; supports up to 1 transmitter and 5 receivers

Standby Power Consumption: 0.25W

Operating Range: Up to 150 meters (open, interference-free environment)

Chimes & Volume: 38 melodies with 4-level volume adjustment (0-90dB)

Transmitter Power Supply: Self-powered by press (no battery required)

Receiver Power Supply: AC 100-240V, 50/60Hz

Water Resistance: Transmitter rated IP68 (fully submersible)

Material: Durable plastic

Color: Black

Method of Use

Learning Code Pairing

1. Connect the receiver to a power source.
2. Press and hold the Volume button on the receiver for approximately 3 seconds to enter pairing mode. The LED indicator will begin flashing and a "Bi" sound will be emitted.
3. Release the button once the LED remains flashing.
4. Within 3 seconds, press the Transmitter button once.
5. The receiver will ring and the LED will flash, indicating a successful pairing.

Note: You can pair up to 5 receivers with a single transmitter.

Clear Pairing (Reset Function)

To remove all paired transmitters:

Press and hold the Volume button on the receiver for approximately 8 seconds. A "Bi" sound will confirm that the pairing has been successfully cleared.

Ringtone Selection

With the receiver powered on, press the Previous or Next button to cycle through the available ringtones and select your preferred melody.

Volume Control

Press the Volume button on the receiver to cycle through the volume levels.

LED Light Control

To turn the LED indicator light on, press and hold the Previous Music button for 3 seconds.

To turn the LED off, press and hold the same button again for 3 seconds.

Transmitter Installation

The transmitter can be mounted on a wall according to your personal preference. Please follow these steps for proper installation:

1. Clean the surface where you intend to mount the transmitter. Allow it to dry completely.
2. Test the transmitter placement to ensure optimal signal strength and operation.
3. Once the ideal position is determined, remove the protective film from the included double-sided adhesive tape.
4. Firmly press the transmitter against the wall to secure it in place

Why Choose Reptronic?

Combining premium durability with a sleek, modern aesthetic, the RPTDB46 is the ultimate wireless doorbell solution.

Important Note

Due to differences in lighting and monitor displays, the actual product color may vary slightly from what is shown. Manual measurements may have a margin of error of 1-3cm
