Reptronic DIY Black Wireless Doorbell: RPTDB44 - 1R 2B

Reptronic DIY black wireless doorbell: RPTDB44 - 1R 2B



Product Overview:

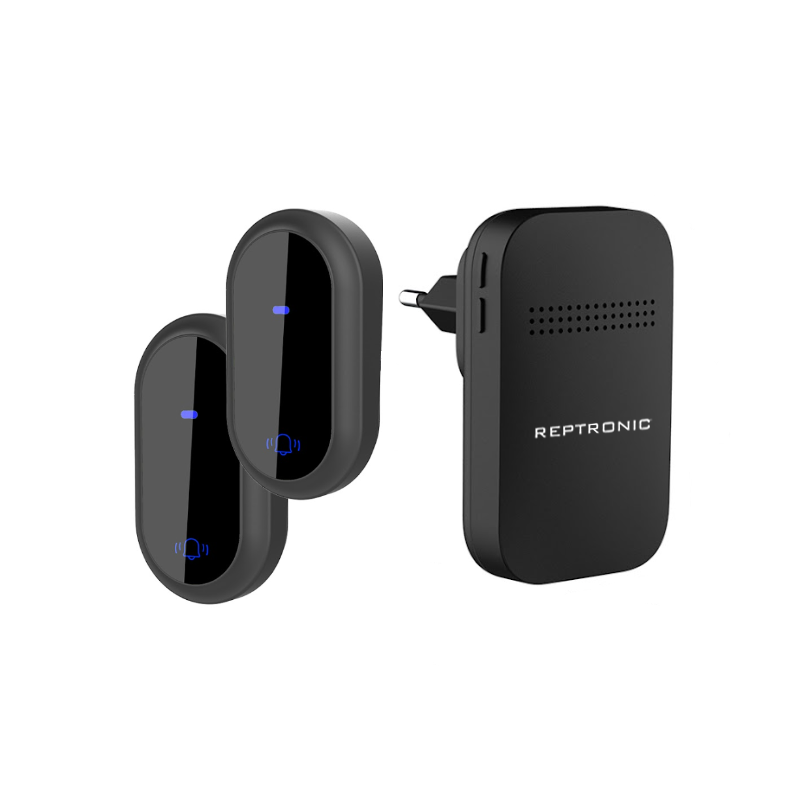

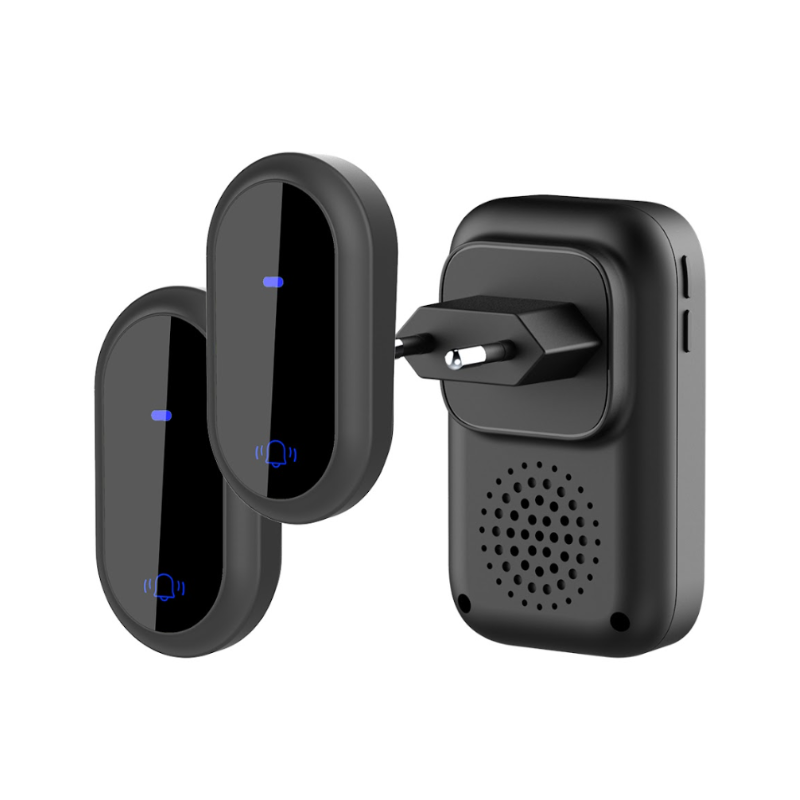

The Reptronic RPTDB44 is a modern, wireless doorbell system that blends simplicity with performance. Designed for quick DIY installation and optimal durability, this unit requires no batteries, making it both eco-friendly and maintenance-free. With IP68 water resistance protection, it is built to endure extreme outdoor conditions.



What is IP68 rated?

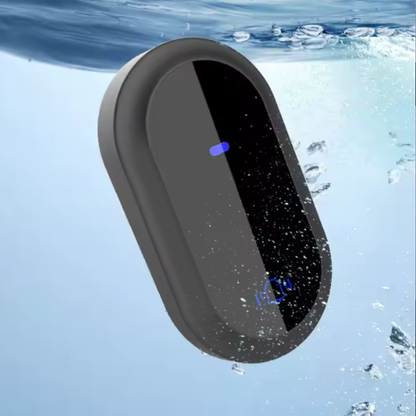

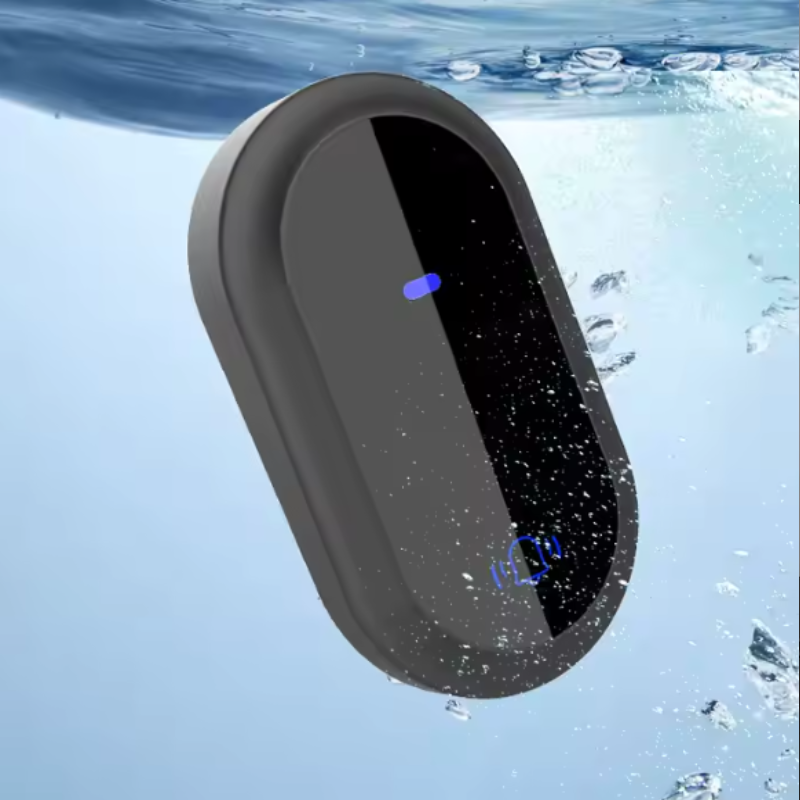

IP68 is better suited for outdoor, It can handle rain, splashes, and even light hose-downs, but should not be submerged or exposed to high-pressure water jets. Ideal for mounting on a gatepost, wall, or fence where it may be rained on directly, even without much shelter. If you're looking for robust water resistance, IP68 is a solid mid-tier choice.





Key Features:

Battery-Free Operation: Transmitter generates power when pressed. No need for battery replacement

Water resistance Design: Transmitter is IP68-rated, Perfect for outdoor gates or fences

Long-Range Reception: Effective transmission distance of up to 150m in open, interference-free areas

Multiple Pairing Support: One transmitter can pair with up to 5 receivers

Customizable Alerts:

38 melodic chimes to choose from

4 adjustable volume levels (0-105dB)

LED indicator with optional always-on setting

Low standby power consumption (0.25W), press-powered transmitter



Installation & Operation

Pairing Instructions

Plug in the receiver

Press the volume button on the receiver for 3 seconds until the LED flashes and a "Bi" sound is heard

Within 3 seconds, press the transmitter. The receiver will chime and flash to confirm successful pairing



Clear Pairing

Press and hold the volume button for 8 seconds until a "Bi" sound indicates all pairings have been cleared



Music Selection

With the receiver powered on, press the "Previous" or "Next" button to cycle through 38 melodies



Volume Adjustment

Press the volume button to select from four sound levels



LED Light Control

Press and hold the "Previous Music" button for 3 seconds to turn the LED indicator on or off



Transmitter Installation:

Clean and dry the desired surface

Peel off the adhesive backing

Mount the transmitter on a wall, gatepost, or door frame



Specifications:

Component

Transmitter

Size (L x W x H)

63 x 63 x 20 mm

Weight

32g

Power Supply

Press Power Generation



Component

Receiver

Size (L x W x H)

30 x 30 x 22 mm

Weight

78g

Power Supply

100-240V, 50/60Hz



Usage Notes

Avoid placing transmitter or receiver near metal structures or electronic interference sources.

Ideal for homes, offices, gates, or apartment buildings.
